76190

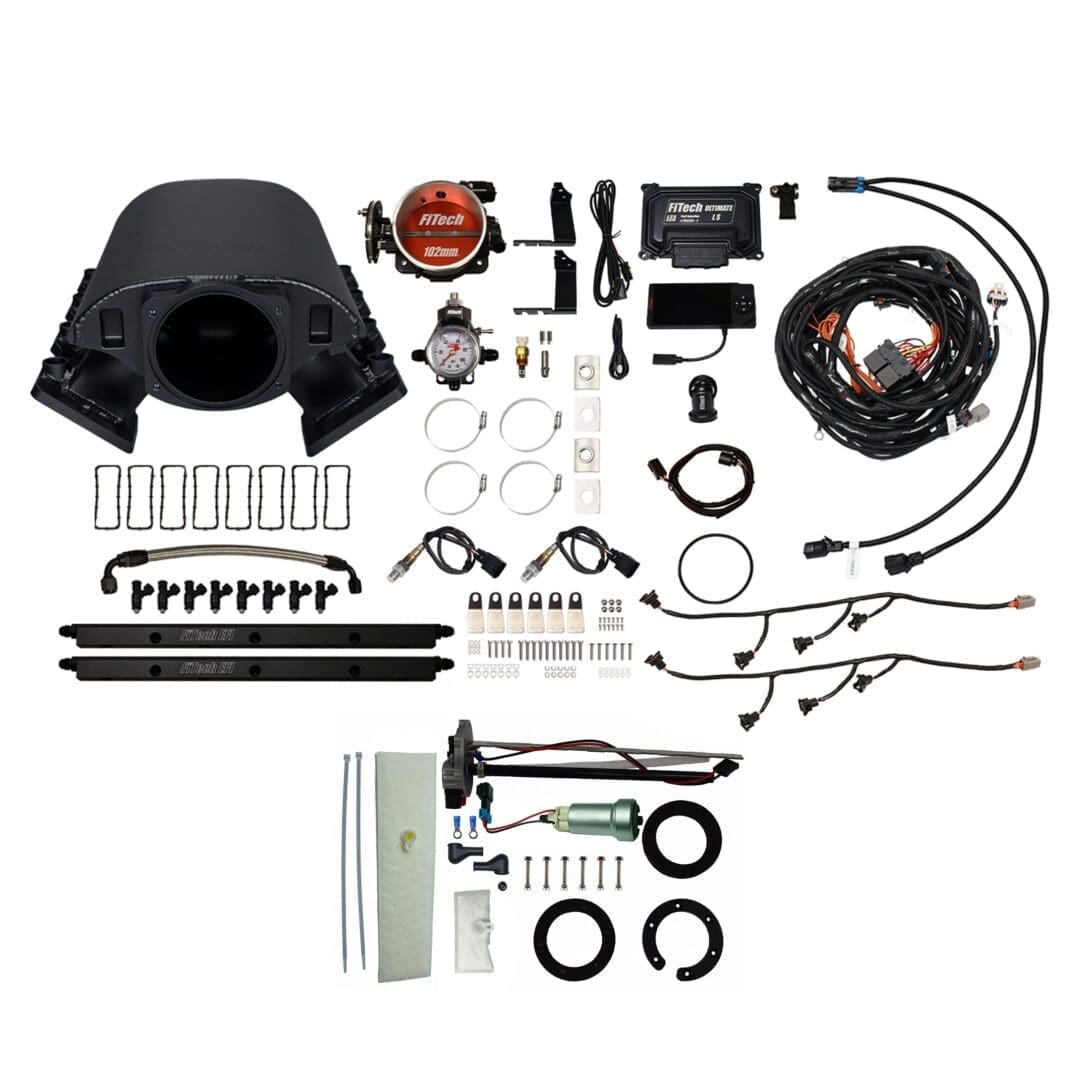

Ultimate Rebel LS 750 HP EFI System With Short Cathedral Intake, In Tank 440 LPH Pump Module & Go Fuel Regulator Master Kit Master Kit
$2,332.99
FiTech Part Number: 76190
In stock
This product falls under the following Emissions Category:
WARNING: Hazardous Material Warning Close WARNING: This product can expose you to chemicals including Nickel Acetate, Chromium, Lead, Lead Compounds, Nickel (Metallic), Nickel Compounds, Diisonyl Phthalate (DINP) and Toluene which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Additional information
Weight | 38 lbs |
---|---|
Dimensions | 29 × 19 × 19 in |
Maximum Horsepower: | 750 HP |
Injection Style: | Multi-port |
Timing Control Compatible: | Yes |
Power Adder Compatible: | Yes |
Power Adder Type: | Boost/Nitrous oxide |
ECU Included: | Yes |
Fuel Pump Included: | Yes |
Transmission Controller Included: | No |
Metering Style: | Speed density (Map-N) |
Intake Manifold Included: | Yes |
Intake Section Included: | Complete |
Intake Material: | Aluminum |
Intake Finish: | Black Anodized |
Engine Block Deck Height: | Standard deck |
Multi-Port Fuel Rails Included: | Yes |
Throttle Body Mounting Flange: | GM LS2 4-bolt |
Venturi Quantity: | 1 |
Venturi Diameter (mm): | 102 mm |
Airflow Rate (cfm): | 1500 cfm |
Throttle Body Material: | Aluminum |
Throttle Body Finish: | Black |
Injectors Included: | Yes |
Injector Size (lbs/hr): | 55 lbs./hr. |
Calibration Module Included : | Yes |
Wiring Harness Included: | Yes |
Oxygen Sensor Included: | Yes |
Fuel Pump Style: | In-tank fuel pump |
Fuel Pressure Regulator Included: | Yes |
MAP Sensor Included: | Yes |
IAT Sensor Included: | Yes |
TPS Sensor Included: | Yes |
Quantity: | Sold as a kit. |
Universal: | No |
Fuel Type: | Alcohol, Gasoline, MethaNol, Flex |
