30001
Go EFI 4 600HP System

$899.10

Part Number: 30001

In stock

California Prop 65 Warning

This product falls under the following Emissions Category:

See Emissions Details

3

WARNING: Hazardous Material Warning Close WARNING: This product can expose you to chemicals including Nickel Acetate, Chromium, Lead, Lead Compounds, Nickel (Metallic), Nickel Compounds, Diisonyl Phthalate (DINP) and Toluene which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Sale!
FiTech Fuel Injection

Description

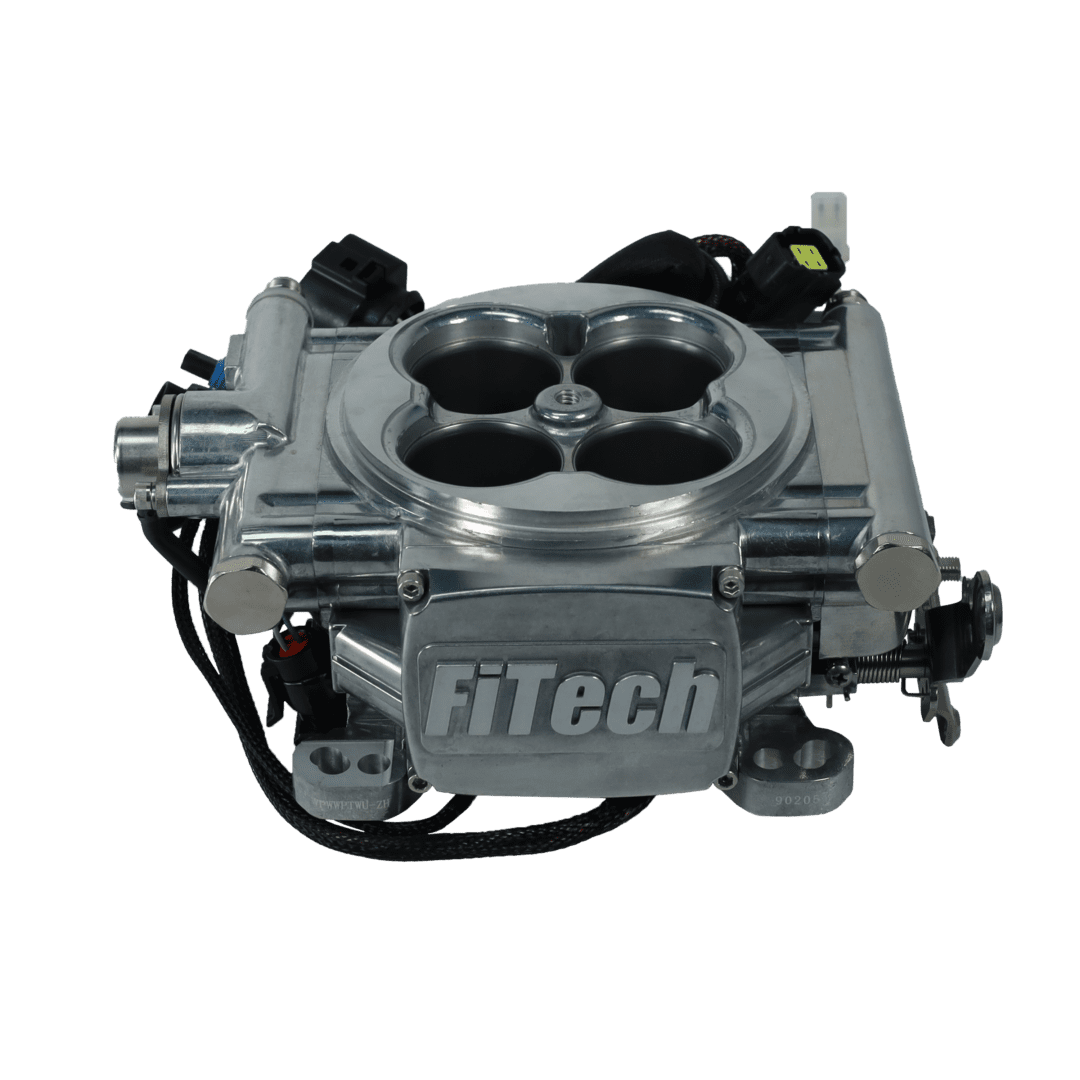

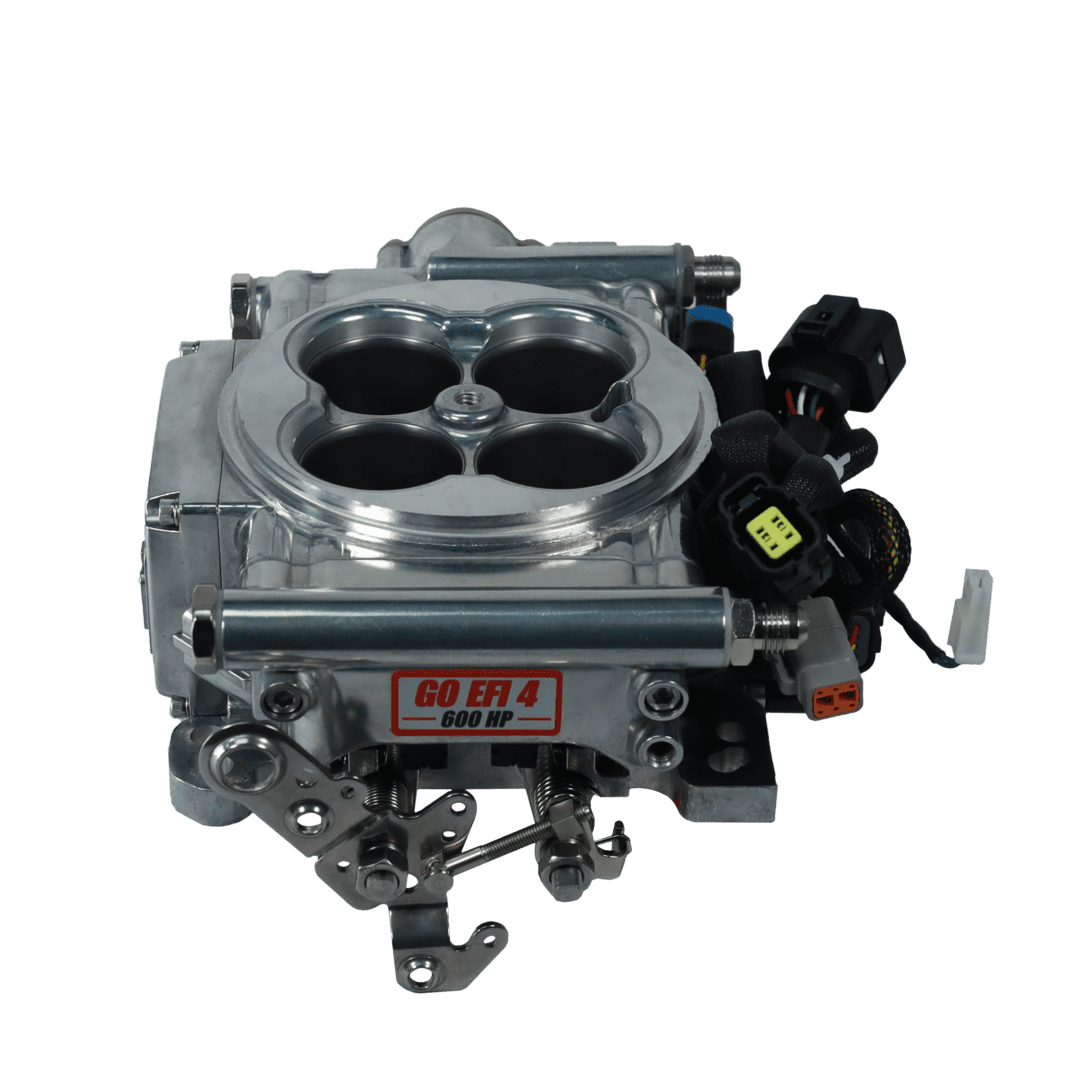

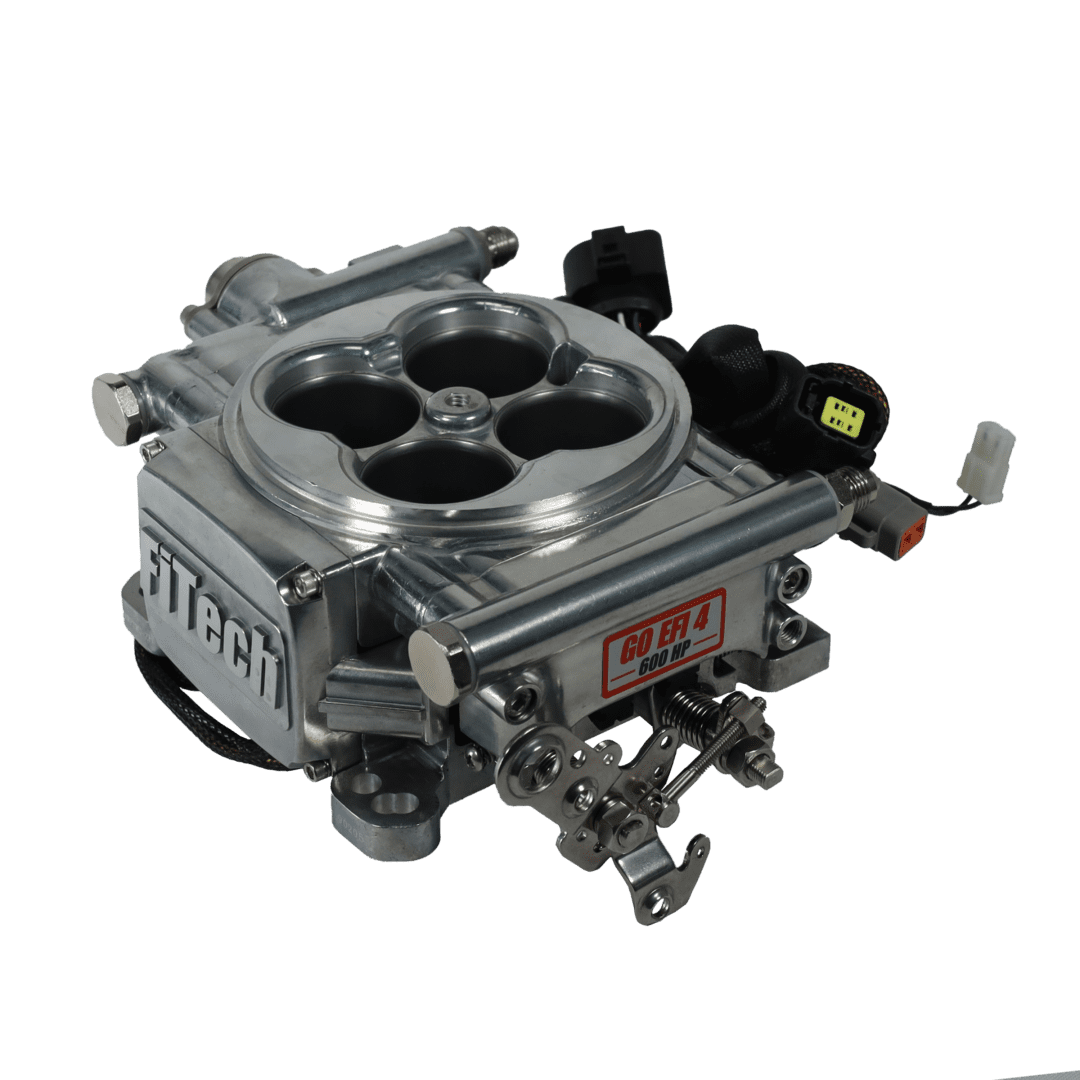

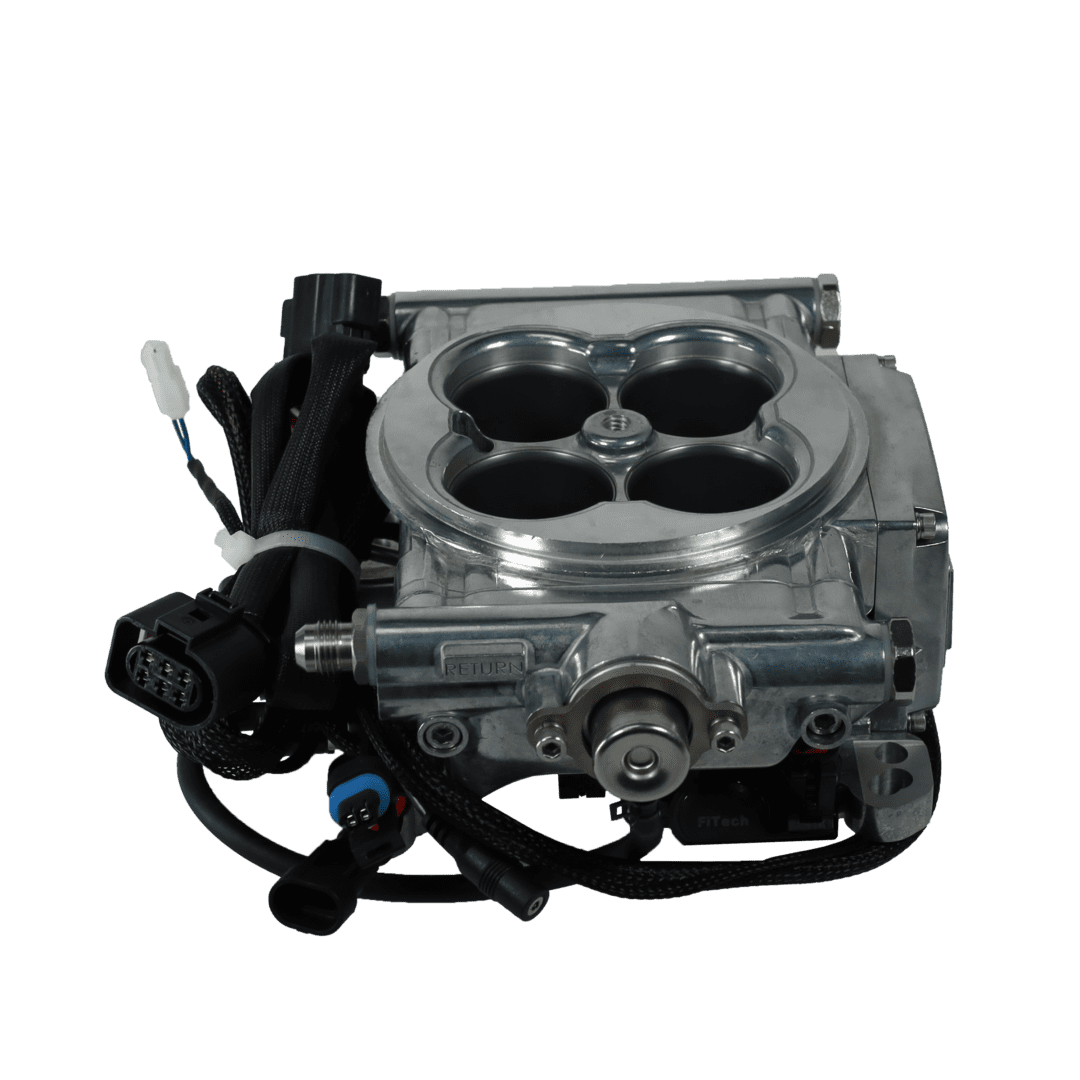

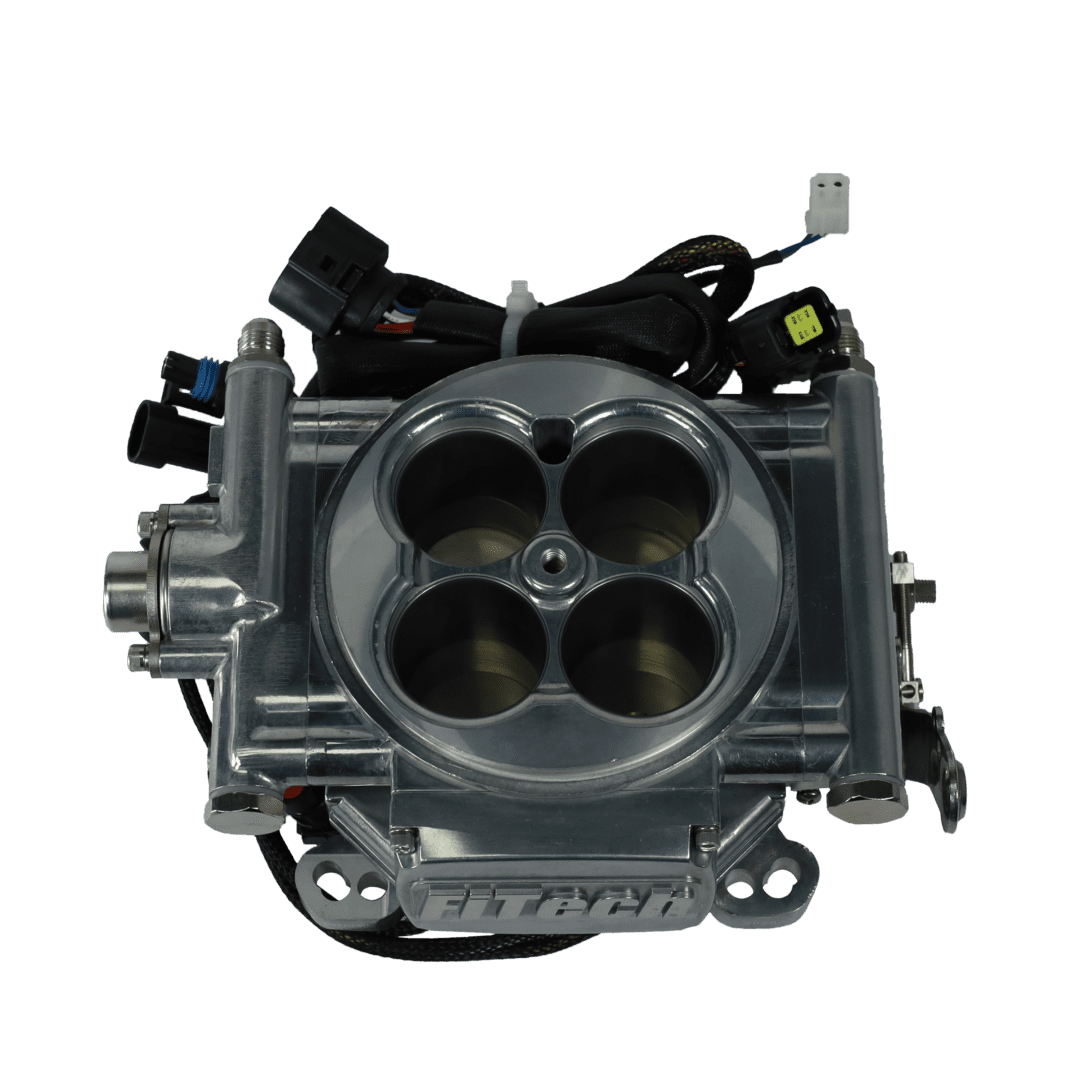

The Go EFI 4 Self Tuning Fuel Injection is rated at 600 HP but is suitable for engines from 200hp thru 600hp. This system is perfect for your everyday Driver right up to your weekend Street Machine or Bracket Racer. It features the FASTEST most accurate Self Learning available, Timing control, Wet flow Annular discharge and tons of additional features.

It fits any 4-bbl intake manifold and is the most self-contained and full-featured unit of this type. The ECU (computer) is mounted on the throttle body, which greatly simplifies installation. No hole in your firewall and no unsightly harness draped across your engine. This is also the only computer mounted throttle body that offers spark control without the need for an external spark box or special distributor. It also has a built-in fuel pressure regulator. A hand-held controller features a touch screen for quick and easy initial set-up.

  • Application: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, Etc. engines making 200 HP up to 600 HP with a 4-barrel intake manifold.
  • Replacement for any 4-barrel carburetors for engines with 200 HP up to 600 HP.
  • Use the same size air cleaner you would normally use for your 4-barrel carburetor.

View All Master Kits
Not legal for use on pollution controlled vehicles. This system is designed to be installed into vehicles that do not require emission controls.

Features

  • 1 BAR internal MAP sensor.
  • Suitable for up to 600hp.
  • (4) Flow matched injectors.
  • (1) Fan control.
  • Built-in pressure regulator.
  • Bright aluminum finish.

Kit Contents

  • (1) Die-cast throttle body.
  • (1) O2 bung kit.
  • (1) Hand-held controller.
  • (1) CTS sensor.
  • (1) Hand-held controller cable.
  • (1) CTS adapter.
  • (1) Windshield mount.
  • (1) Mini USB cable.
  • (1) 4+2-Pin Connector.
  • (1) Return plug.
  • (1) O2 sensor.
  • (1) Gasket kit.

____________________________________________________________________________

For FiTech Fuel Injection Tech Videos:

Check in for tips and tricks from the FiTech experts!

Additional information

Additional information

Maximum Horsepower:

600 HP
Injection Style:

Throttle body
Timing Control Compatible:

Yes
Power Adder Compatible:

No
ECU Included:

Yes
Fuel Pump Included:

No
Transmission Controller Included:

No
Metering Style:

Speed density (Map-N)
Intake Manifold Included:

No
Intake Section Included:

No
Throttle Body Mounting Flange:

4-barrel square bore
Venturi Quantity:

4
Venturi Diameter (mm):

43 mm
Airflow Rate (cfm):

850 cfm
Throttle Body Material:

Cast aluminum
Throttle Body Finish:

Polished
Injectors Included:

Yes
Injector Size (lbs/hr):

80 lb.
Calibration Module Included :

Yes
Wiring Harness Included:

Yes
Oxygen Sensor Included:

Yes
Fuel Pressure Regulator Included:

Yes
MAP Sensor Included:

Yes
IAT Sensor Included:

Yes
TPS Sensor Included:

Yes
Quantity:

Sold individually.
Universal:

Yes
Fuel Type:

Alcohol, Gasoline, MethaNol, Flex
