36332
Ultra Ram 800 HP Chevy Big Block Rectangle Port EFI System With Go Fuel Returnless In-Tank Module Master Kit

Description

Ultra Ram BBC 102 mm Throttle Body

Our Ultra Ram EFI Systems deliver outstanding port fuel injection performance with an aggressive-looking sheet metal intake manifold. The design of the Ultra Ram intake performs as good as it
looks and will support up to 600 horsepower (naturally aspirated).

The system comes ready to go out of the box with the injectors and fuel rails installed. The robust ECU is easy to mount and handles the air/fuel mixture targets with self-learning technology so no laptop is required. In fact, you only need to input a few engine specs into the color touch screen monitor to get the engine to fire up. The Ultra Ram is ideal for crate motors or your custom built engine and will deliver great performance with the looks to match.

Features

• 800 HP EFI Port System.
• Chevy Big Block Rec Port
• 102mm Throttle Body
• Self Learning
• Timing Control ready
• Matte black finish.
• (8) Flow matched injectors
• Works with HEI Large Cap Distributor

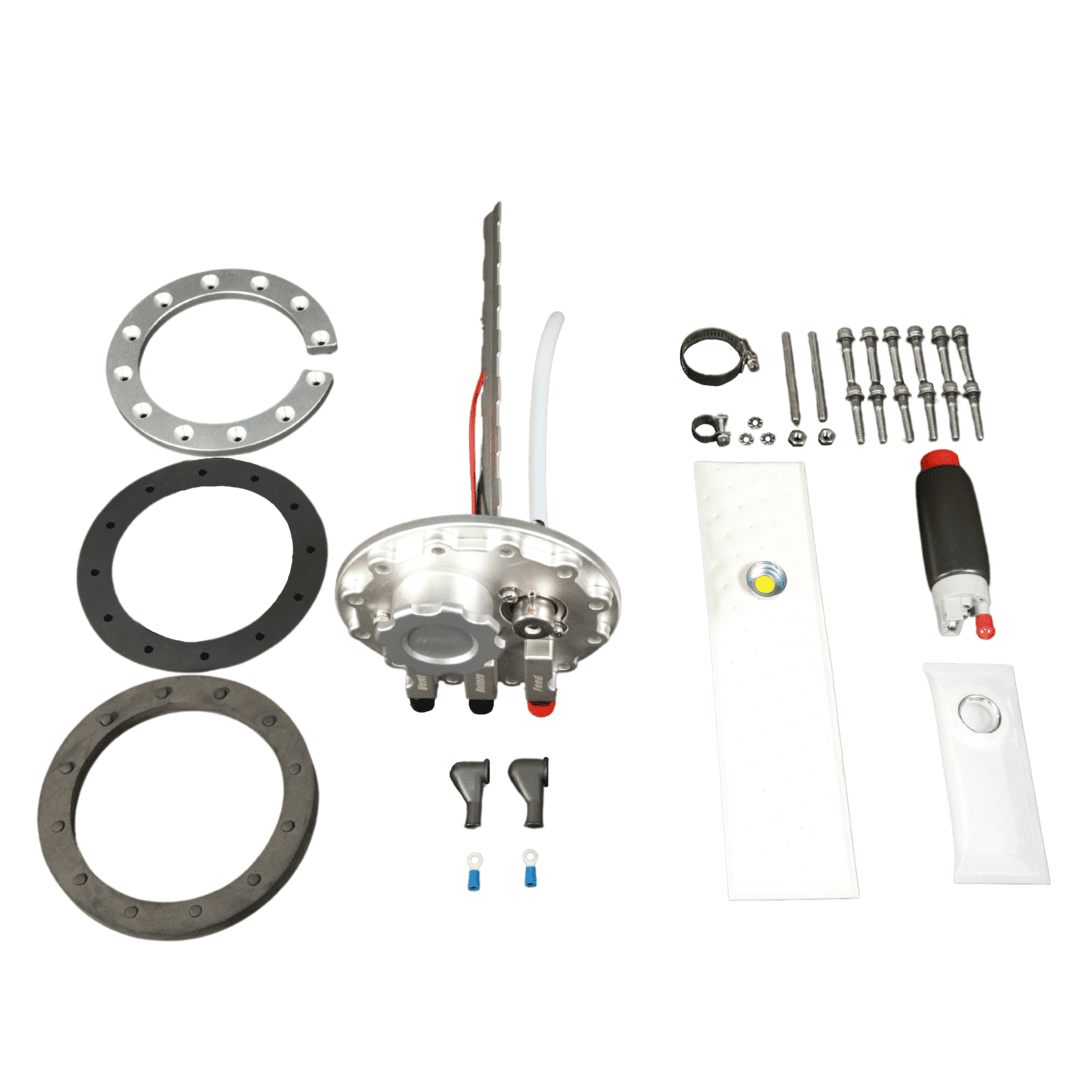

This kit is equipped with the Go Fuel In Tank Fuel Pump Returnless Module With 2 Inch Fill.

If you’re looking to update your fuel cell or custom tank with an internal electric fuel pump, turn to FiTech for their new Fuel Cell Pump Modules.

The Go Fuel In Tank Fuel Pump Returnless Module With 2 Inch Fill single pump model supports up to 800 HP.

The Single Pump model is supplied with an efficient 340 LPH pump complemented with an internal regulator to maintain 58-psi so it can be run returnless.

The CNC-machined billet module top is machined to fit most fuel cells with a 12-bolt flange or can be installed in a custom tank. There is a 2” diameter filler assembly along with a sealed cap (filler tube extensions are available separately). The feed and return outlets are machined for -6AN ORB fittings which are supplied to help complete your installation along with secure terminals to connect the fuel pump.

The fuel pump can be positioned in tanks from 7” – 16” in depth and is supplied with an effective filter to stop any debris from entering the system. Nylon hose and Viton seals make the modules compatible for use with E85 fuels.
