31002
Go EFI 4 600HP Matte Black EFI System With Inline Fuel Delivery Master Kit
$1,272.99
FiTech Part Number: 31002
In stock
This product falls under the following Emissions Category:
WARNING: Hazardous Material Warning Close WARNING: This product can expose you to chemicals including Nickel Acetate, Chromium, Lead, Lead Compounds, Nickel (Metallic), Nickel Compounds, Diisonyl Phthalate (DINP) and Toluene which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Description
The Go EFI 4 with matte black finish combined with the Inline Fuel Pump Fuel Delivery Kit is rated at 600HP but is suitable for engines from 200HP thru 650HP. This self-tuning fuel injection system is perfect for your everyday Driver right up to your weekend Street Machine or Bracket Racer. It features the fastest most accurate self-learning available, timing control, wet flow annular discharge and tons of additional features.
It fits any 4-bbl intake manifold and is the most self-contained and full-featured unit of this type. The ECU (computer) is mounted on the throttle body, which greatly simplifies installation. No hole in your firewall and no unsightly harness draped across your engine. This is also the only computer mounted throttle body that offers spark control without the need for an external spark box or special distributor. It also has a built-in fuel pressure regulator. A hand-held controller features a touch screen for quick and easy initial set-up.
The Inline Fuel Pump Fuel Delivery Kit includes an EFI grade 255 L/PH inline external fuel pump that is suitable for engines making up to 600HP. (Note that some of our EFI kits are limited to less than 750HP due to maximum usable injector sizes). This kit also includes 40-feet of EFI grade fuel hose suitable for both the inlet and return lines between the fuel tank and the engine. The kit includes two billet fuel filters. The filters include a 60-micron pre-filter and a 30-micron post filter.
|
Application: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, Etc. engines making 200 HP up to 650 HP with a 4-barrel intake manifold. |
|
Replacement for any 4-barrel carburetors for engines with 200 HP up to 650 HP. |
|
Use the same size air cleaner you would normally use for your 4-barrel carburetor. |

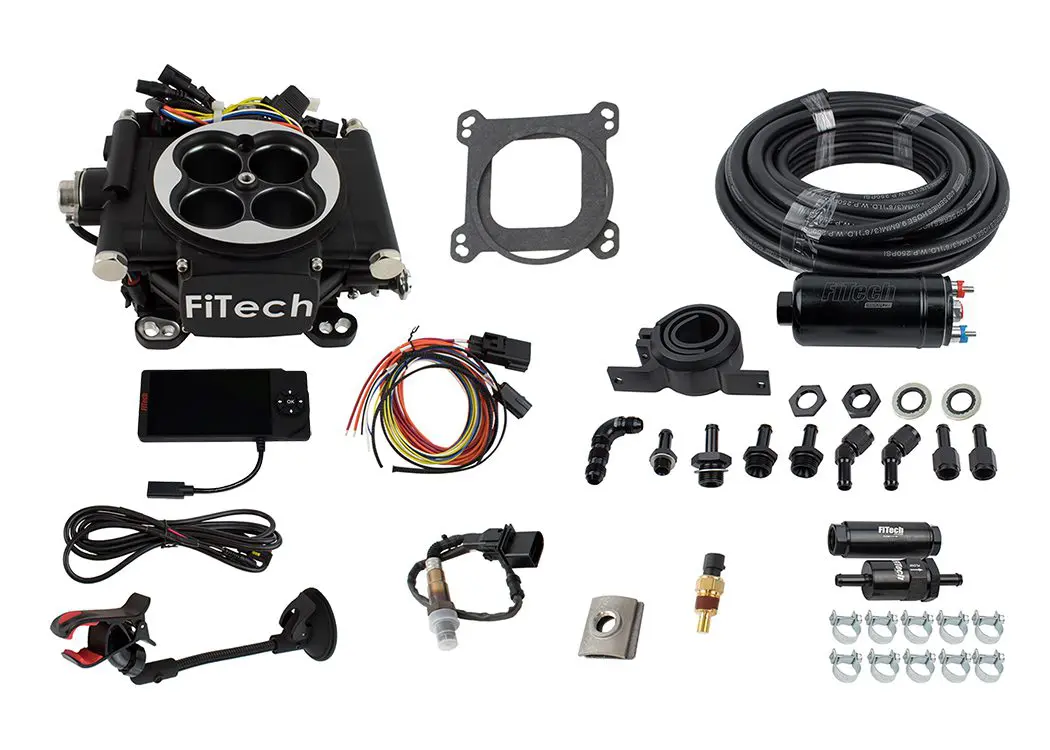

Kit Contents
- (1) Die-cast throttle body.
- (1) O2 bung kit.
- (1) Hand-held controller.
- (1) CTS sensor.
- (1) Hand-held controller cable.
- (1) CTS adapter.
- (1) Windshield mount.
- (1) Mini USB cable.
- (1) 4+2-Pin Connector.
- (1) Return plug.
- (1) O2 sensor.
- (1) Gasket kit.
- (1) Go Fuel Inline Pump Fuel Delivery Kit
View All Master Kits
___________________________________________________________________________
For FiTech Fuel Injection Tech Videos:
Check in every Tuesday for tips and tricks from the FiTech experts!
Additional information
Weight | 22 lbs |
---|---|
Dimensions | 25 × 19 × 9 in |
Maximum Horsepower: | 600 HP |
Injection Style: | Throttle body |
Timing Control Compatible: | Yes |
Power Adder Compatible: | No |
ECU Included: | Yes |
Fuel Pump Included: | Yes |
Transmission Controller Included: | No |
Metering Style: | Speed density (Map-N) |
Intake Manifold Included: | No |
Intake Section Included: | No |
Throttle Body Mounting Flange: | 4-barrel square bore |
Venturi Quantity: | 4 |
Venturi Diameter (mm): | 43 mm |
Airflow Rate (cfm): | 850 cfm |
Throttle Body Material: | Cast aluminum |
Throttle Body Finish: | Black |
Injectors Included: | Yes |
Injector Size (lbs/hr): | 80 lbs./hr. |
Calibration Module Included : | Yes |
Wiring Harness Included: | Yes |
Oxygen Sensor Included: | Yes |
Fuel Pump Style: | External fuel pump |
Fuel Pressure Regulator Included: | Yes |
MAP Sensor Included: | Yes |
IAT Sensor Included: | Yes |
TPS Sensor Included: | Yes |
Quantity: | Sold as a kit. |
Universal: | Yes |
Fuel Type: | Alcohol, Gasoline, MethaNol, Flex |
