71003

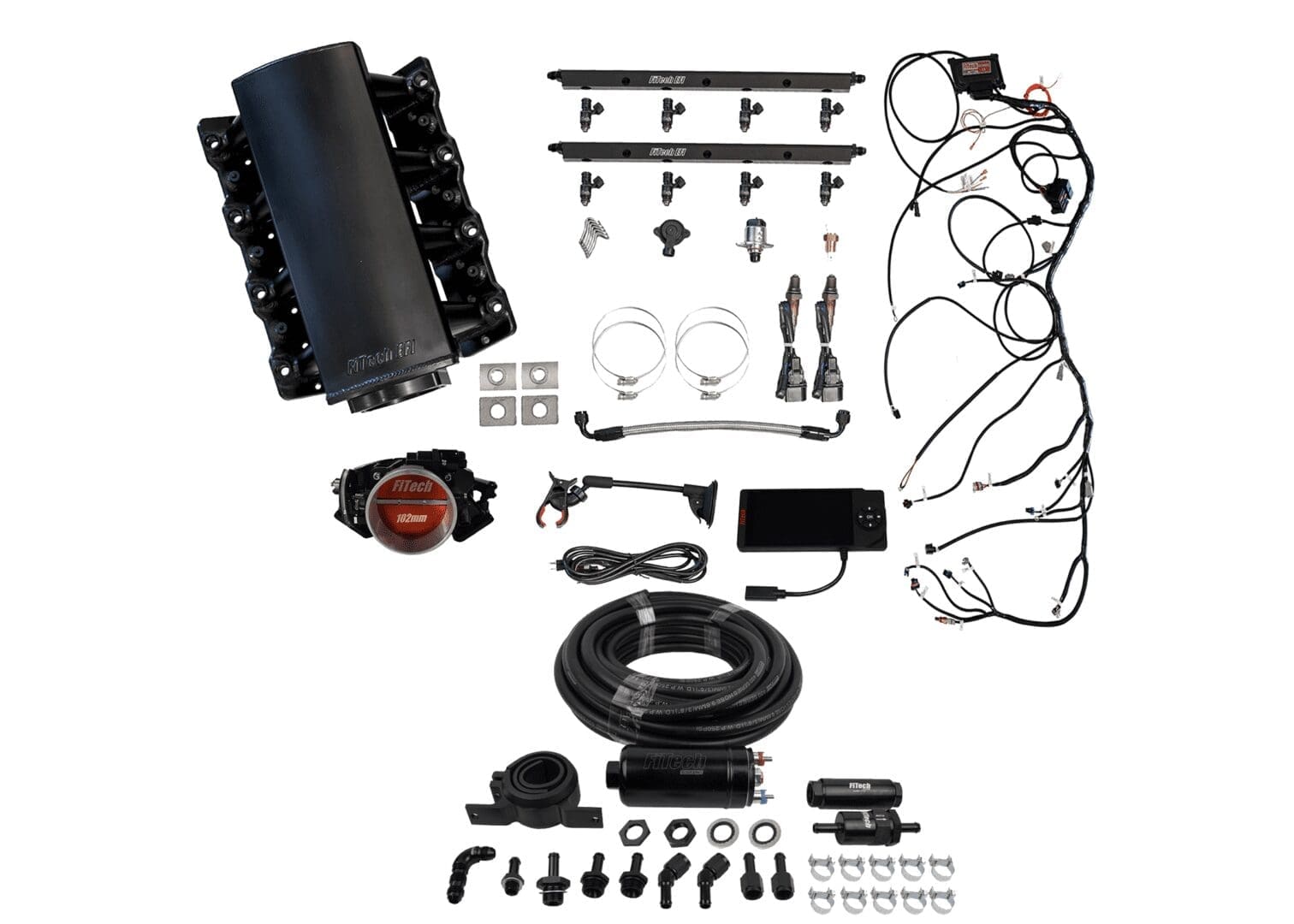

Ultimate LS1/LS2/LS6 750HP + In-line Fuel Pump Master Kit

Description

LS motors have a great base for power, but what they really need is something wicked to wake them up. FiTech LS EFI 750 HP fuel injection systems have alarming power, exciting style, and will take you and your vehicle to the edge. FiTech fabricated many aluminum parts for these systems, including the low-profile 102mm billet throttle body, high-volume billet fuel rails, and an intake manifold with a 1,500 to 6,500 rpm powerband and 3mm construction. Sequential spark and fuel control mate the 55 lbs./hr. injectors, plug-and-play wiring harness, and color touch screen self-learning ECU. This allows you to program two fan control outputs, most tach and speedometer output drivers, and target AFR and timing on-the-fly. A suction cup mounting bracket puts the controller at your fingertips and allows for impressive visual aids. The optional transmission control feature is suitable for 4L60, 4L65, 4L70, or 4L80 GM transmissions. Awaken the beast and feed its needs with an ultra-performing FiTech LS EFI 750 HP fuel injection system with transmission controller.

Additional features:

•  Programmable touch screen hand-held controller with data log features
• 3-bar MAP sensor automatically detects up to 30 psi boost
• AN fittings and fuel crossover
• 24X and 58X crank and cam-compatible and works with custom cams
• Black anodized aluminum parts for style and corrosion resistance
• High-flow, cable-operated throttle body
• Dual Bosch wideband with dual trim controlled
• Knock sensor control
• Stainless oxygen sensor bung
• Compatible with car and truck coils
• Designed for applications making at least 6 inches of vacuum at idle

Featuring an EFI-grade 255 L/PH inline external fuel pump designed for use in engines making up to 600 horsepower, the FiTech 50001 fuel delivery kit ensures that fuel in your street machine gets to where it needs to go. Also included in the kit is 40 feet of EFI-grade, 3/8-inch fuel hose designed to work as both inlet and return lines; two billet aluminum fuel filters; a 100-micron pre filter; a 10-micron post filter; barb fitting hose ends; and a mounting clamp for the electric pump.

• 255 LPH fuel pump

• 40 feet AN-6 fuel injection hose

• 100 micron billet pre fuel filter

• 10 micron billet post fuel filter

• Black anodized AN-6 fittings
