71004 Ultimate LS1/LS2/LS6 750HP w/ Trans Control + In-line Fuel Pump Master Kit

$2,057.59

In stock

California Prop 65 Warning

This product falls under the following Emissions Category:

See Emissions Details

3

WARNING: Hazardous Material Warning Close WARNING: This product can expose you to chemicals including Nickel Acetate, Chromium, Lead, Lead Compounds, Nickel (Metallic), Nickel Compounds, Diisonyl Phthalate (DINP) and Toluene which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Sale!

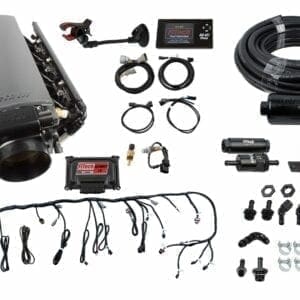

Ultimate LS 750 HP EFI System With Short Cathedral Intake, Transmission Control & Inline Fuel Pump Master Kit

Description

FiTech?s black anodized Ultimate LS1/LS2/LS6 750HP Kit with trans control combined with an Inline Fuel Pump fuel delivery kit are a complete self-tuning induction systems for LS engines designed for the do-it-yourself hot rodder to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today. Forget sourcing mismatched parts and cutting and splicing old harnesses and re-flashed ECU?s from ?Craigs List? tuners.

The Inline Fuel Pump Fuel Delivery Kit includes an EFI grade 255 L/PH inline external fuel pump that is suitable for engines making up to 650HP. (Note that some of our EFI kits are limited to less than 750HP due to maximum usable injector sizes). This kit also includes 40-feet of EFI grade fuel hose suitable for both the inlet and return lines between the fuel tank and the engine. The kit includes two billet fuel filters. The filters include a 60-micron pre-filter and a 30-micron post filter.

Prop 65

Additional information

Weight 42 lbs
Dimensions 29 × 19 × 19 in
Maximum Horsepower:

750 HP
Injection Style:

Multi-port
Timing Control Compatible:

Yes
Power Adder Compatible:

Yes
Power Adder Type:

Boost/Nitrous oxide
ECU Included:

Yes
Fuel Pump Included:

Yes
Transmission Controller Included:

Yes
Metering Style:

Speed density (Map-N)
Intake Manifold Included:

Yes
Intake Section Included:

Complete
Intake Material:

Aluminum
Intake Finish:

Black Anodized
Engine Block Deck Height:

Standard deck
Multi-Port Fuel Rails Included:

Yes
Throttle Body Mounting Flange:

GM LS2 4-bolt
Venturi Quantity:

1
Venturi Diameter (mm):

102 mm
Airflow Rate (cfm):

1500 cfm
Throttle Body Material:

Billet aluminum
Throttle Body Finish:

Black
Injectors Included:

Yes
Injector Size (lbs/hr):

55 lbs./hr.
Calibration Module Included :

Yes
Wiring Harness Included:

Yes
Oxygen Sensor Included:

Yes
Fuel Pump Style:

External fuel pump
Fuel Pressure Regulator Included:

No
MAP Sensor Included:

Yes
IAT Sensor Included:

Yes
TPS Sensor Included:

Yes
Quantity:

Sold as a kit.
Universal:

No
Fuel Type:

Alcohol, Gasoline, MethaNol, Flex
