30-11-614

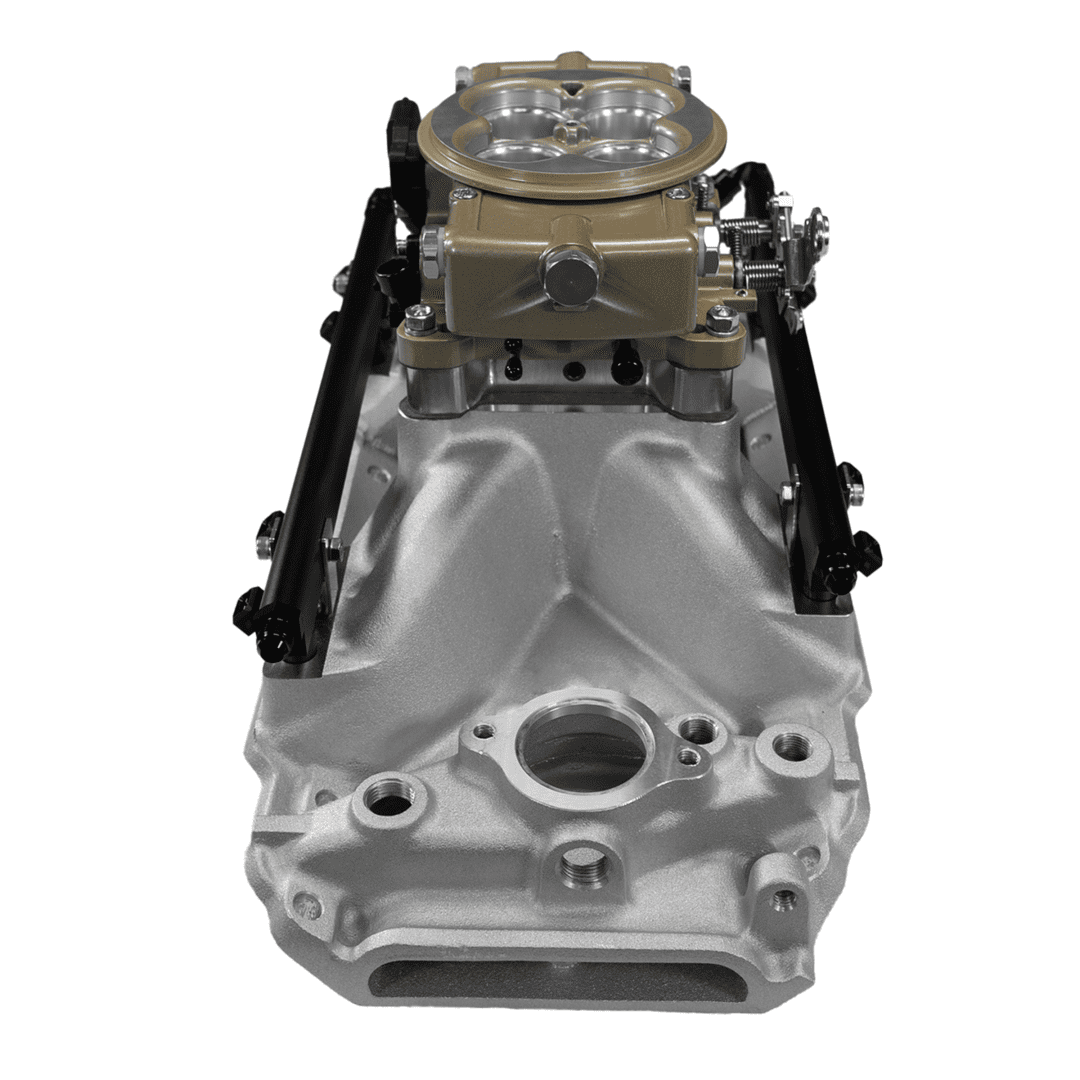

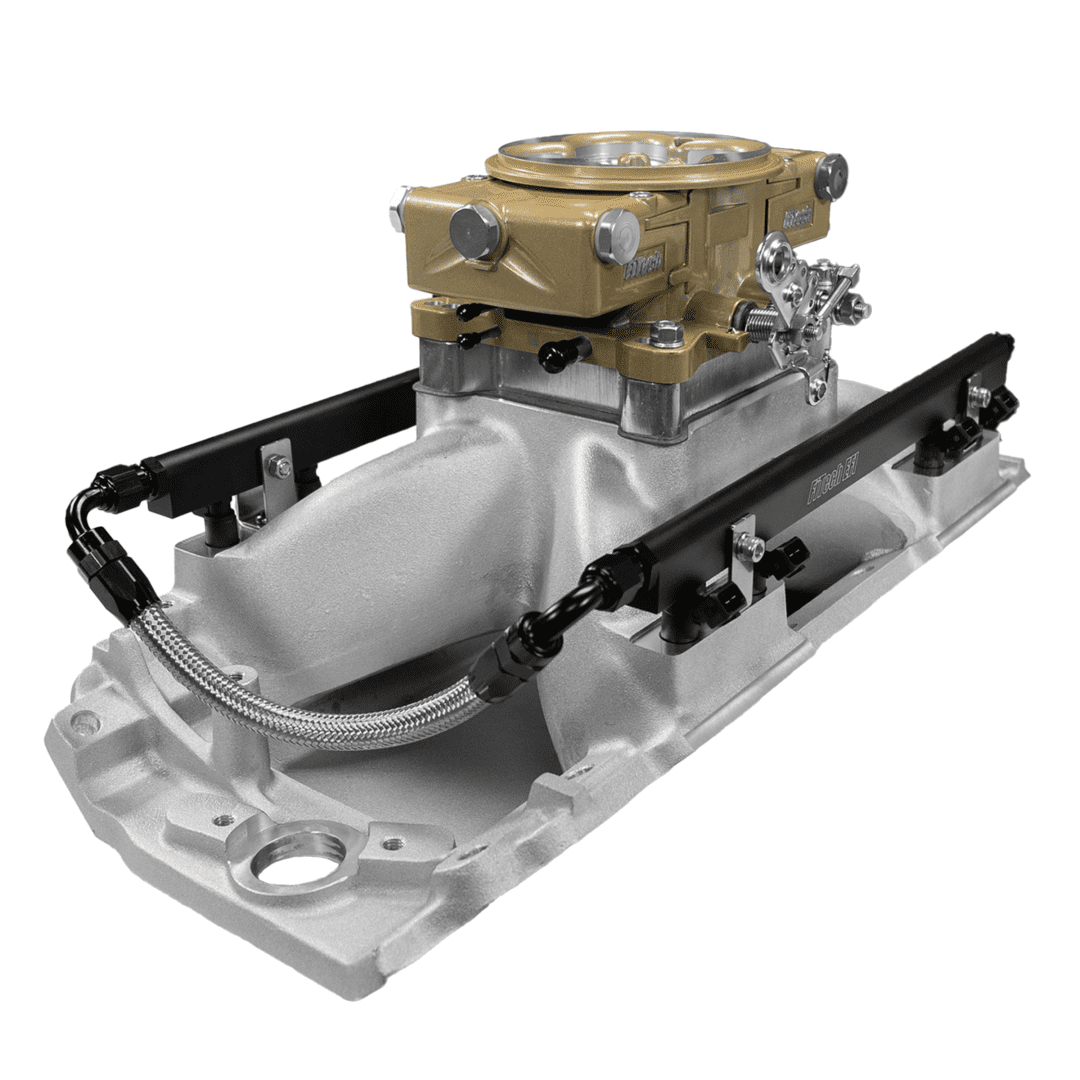

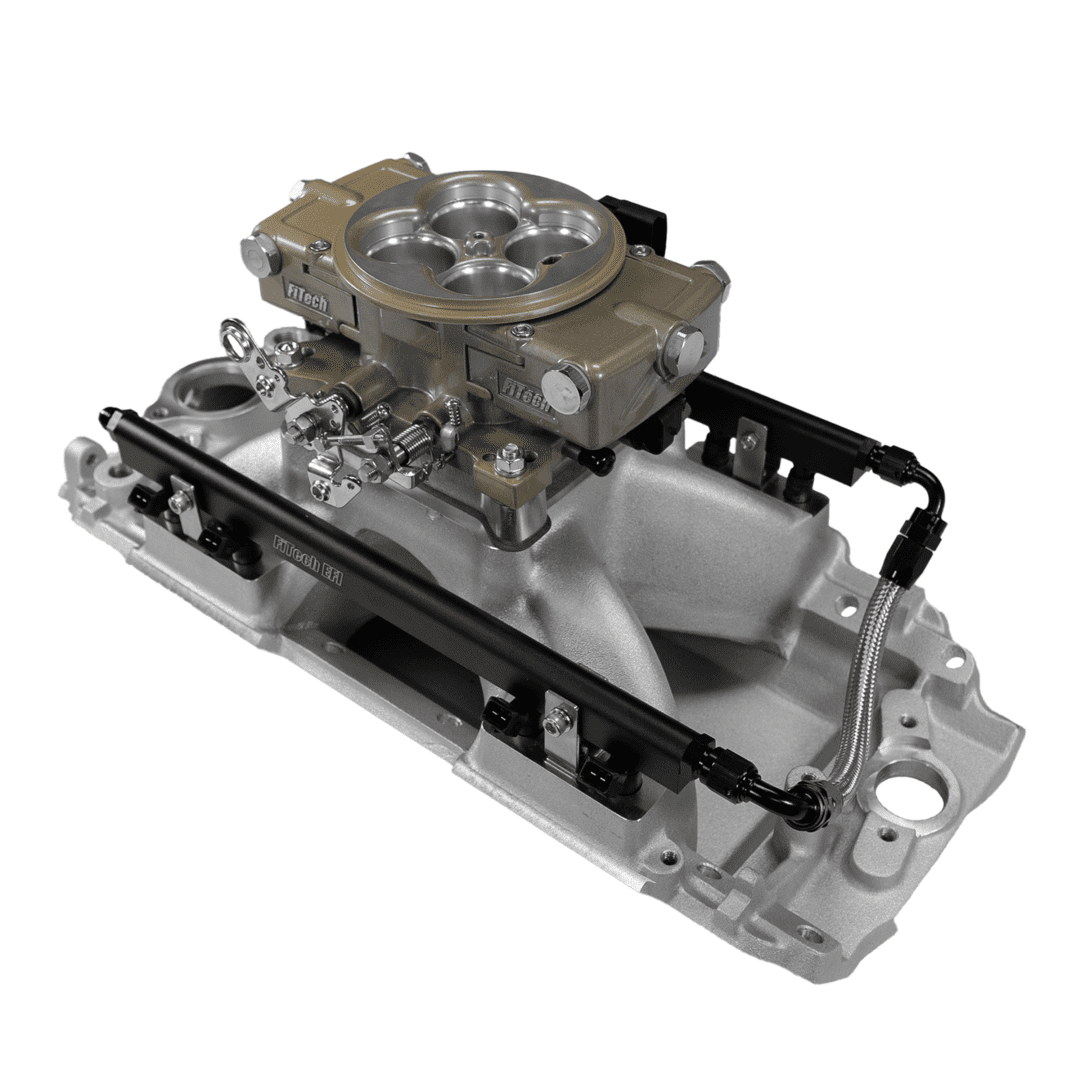

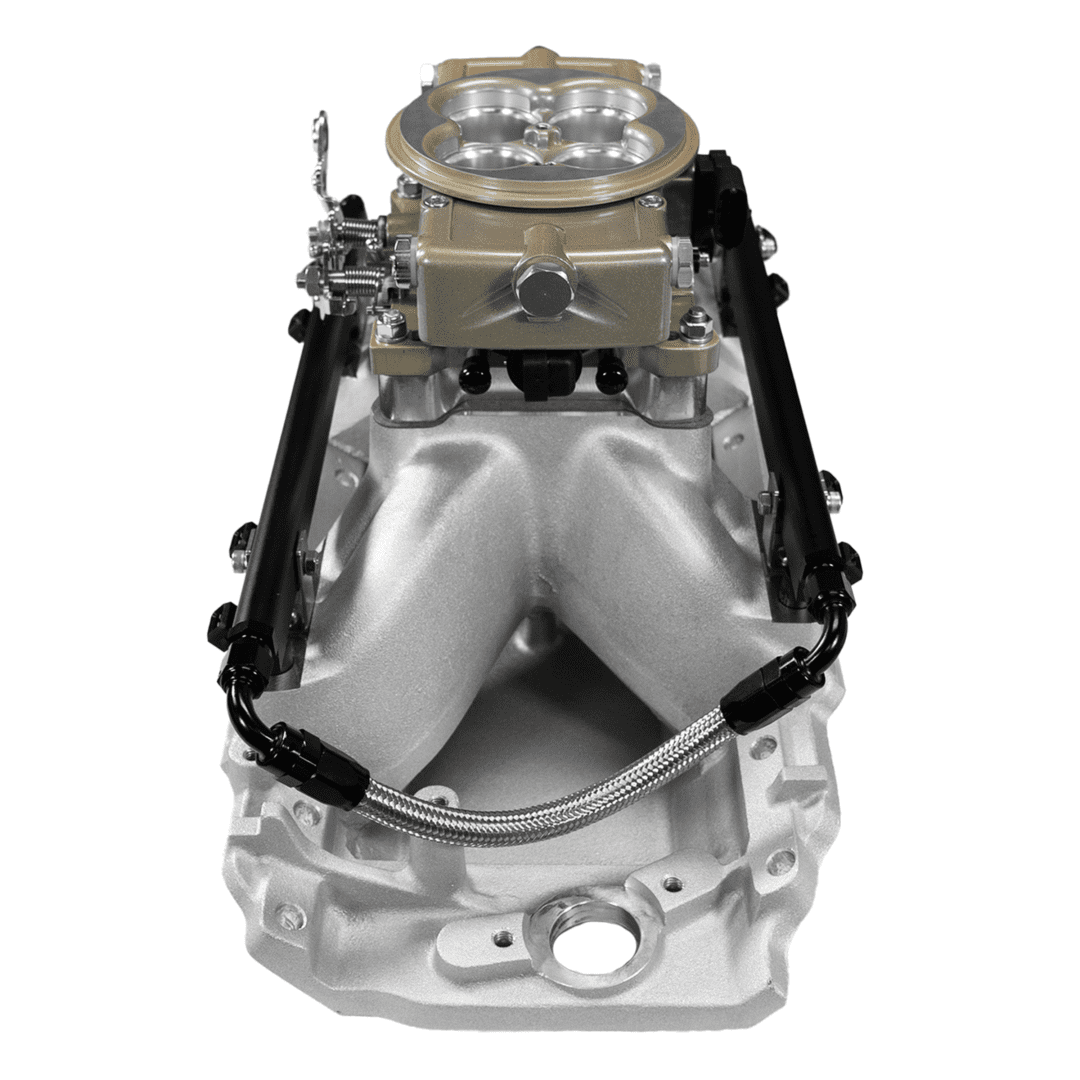

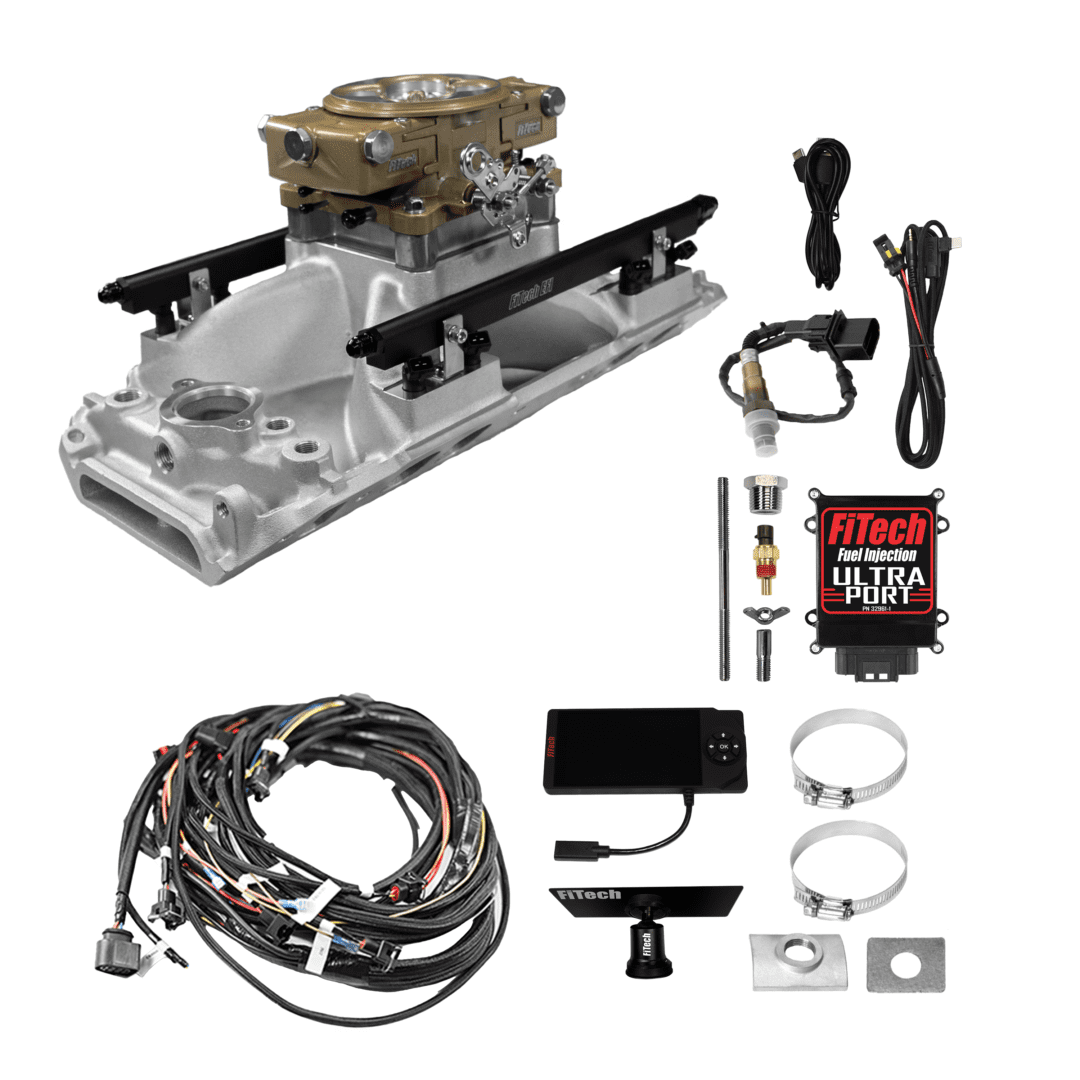

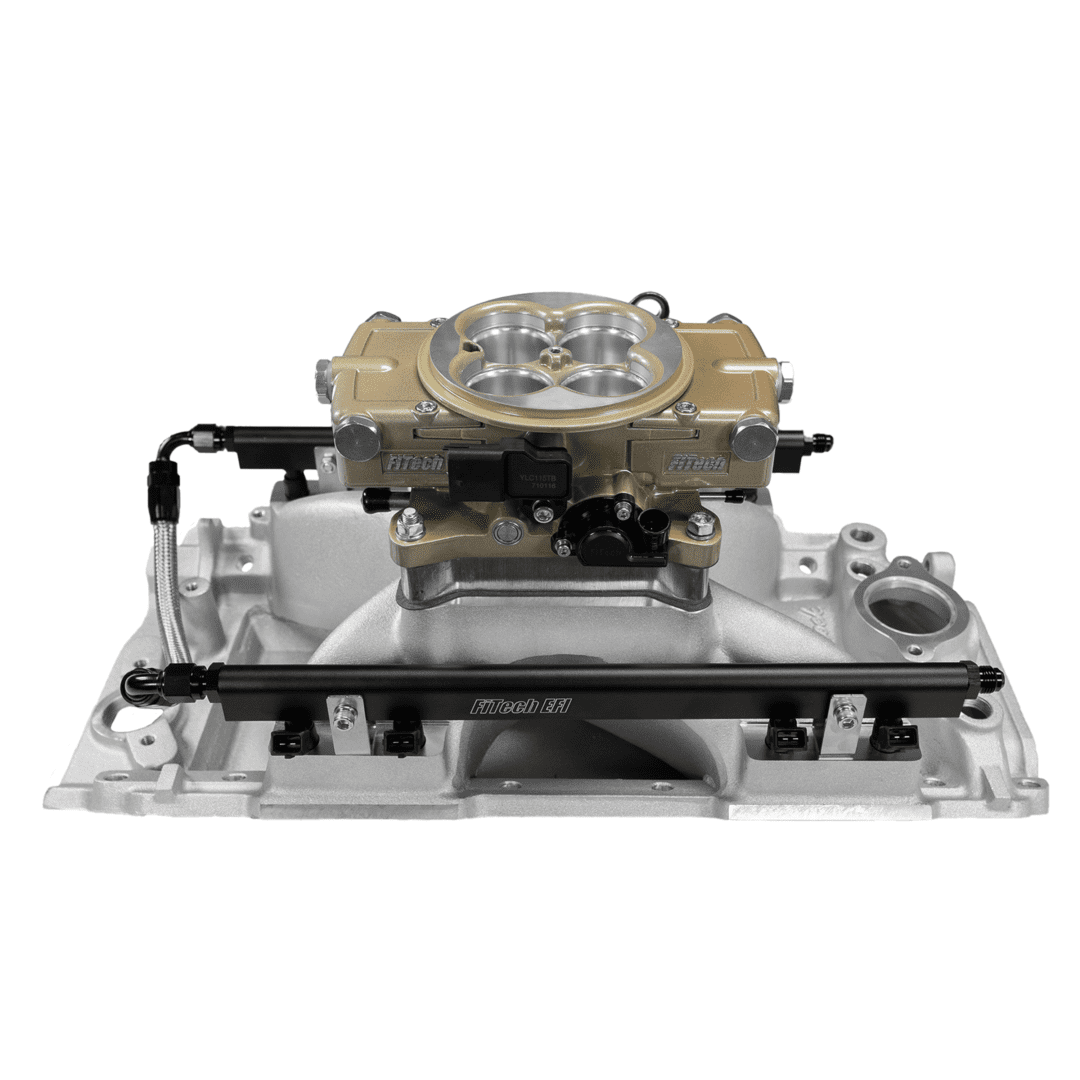

Ultra Port, 750 HP Chevy Big Block Oval Port EFI System, 4150 Flange Classic Gold Throttle Body,3-Bar TMAP

$2,740.80

FiTech Part Number: 30-11-614

In stock

California Prop 65 Warning

This product falls under the following Emissions Category:

See Emissions Details

3

WARNING: Hazardous Material Warning Close WARNING: This product can expose you to chemicals including Nickel Acetate, Chromium, Lead, Lead Compounds, Nickel (Metallic), Nickel Compounds, Diisonyl Phthalate (DINP) and Toluene which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Sale!

Additional information

Weight 43 lbs
Dimensions 19 × 18 × 29 in
Maximum Horsepower with Gas:

750
Injection Style:

Multi-port
Timing Control Compatible True/False:

TRUE
Power Adder Type:

Forced induction/Nitrous oxide
ECM Included True/False:

TRUE
Self Tuning True/False:

TRUE
User Tunable True/False:

TRUE
Fuel Pump Included True/False:

FALSE
EGR True/False:

FALSE
Transmission Controller Included True/False:

TRUE
Metering Style:

Speed density (Map-N)
Intake Manifold Included True/False:

TRUE
Intake Section Included:

Complete
Intake Material:

Aluminum
Intake Finish:

Cast
Engine Block Deck Height:

Standard Deck
Multi-Port Fuel Rails Included True/False:

TRUE
Throttle Body Included True/False:

TRUE
Throttle Body Mounting Flange:

4-barrel square bore
Venturi Quantity:

4
Venturi Diameter (mm):

59 mm
Airflow Rate (cfm):

1000 cfm
Throttle Body Material:

Cast aluminum
Throttle Body Finish:

Gold
Injectors Included True/False:

TRUE
Injector Size (lbs/hr):

55 lbs./hr.
Calibration Module Included True/False:

TRUE
Wiring Harness Included True/False:

TRUE
Oxygen Sensor Included True/False:

TRUE
Fuel Pressure Regulator Included True/False:

FALSE
MAP Sensor Included True/False:

TRUE
IAT Sensor Included True/False:

TRUE
TPS Sensor Included True/False:

TRUE
IAC Motor Included True/False:

TRUE
Quantity:

Sold as a kit.
Universal True/False:

FALSE
Fuel Type:

Alcohol, Gasoline, Methanol, Flex
