71017
Ultimate LS7 750HP Square Port + In-line Fuel Pump Master Kit
$2,283.99 $1,827.19
In stock
This product falls under the following Emissions Category:
WARNING: Hazardous Material Warning Close WARNING: This product can expose you to chemicals including Nickel Acetate, Chromium, Lead, Lead Compounds, Nickel (Metallic), Nickel Compounds, Diisonyl Phthalate (DINP) and Toluene which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Description

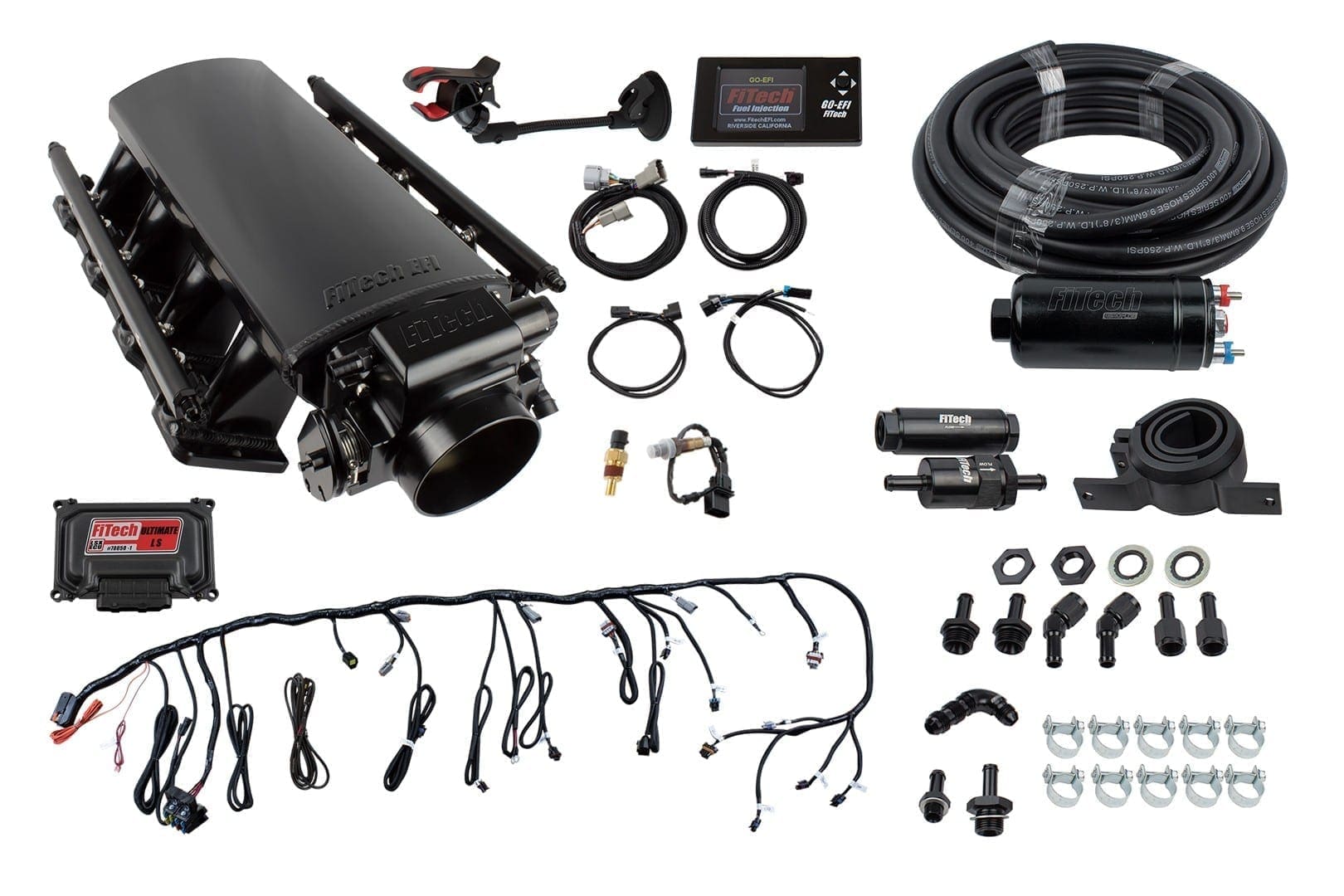

FiTech’s black Ultimate LS7 750HP Square Port Kit combined with an Inline Fuel Pump fuel delivery kit are a complete self-tuning induction systems for LS engines designed for the do-it-yourself hot rodder to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today.
The Inline Fuel Pump Fuel Delivery Kit includes an EFI grade 255 L/PH inline external fuel pump that is suitable for engines making up to 650HP. (Note that some of our EFI kits are limited to less than 750HP due to maximum usable injector sizes). This kit also includes 40-feet of EFI grade fuel hose suitable for both the inlet and return lines between the fuel tank and the engine. The kit includes two billet fuel filters. The filters include a 60-micron pre-filter and a 30-micron post filter.
Additional information
Weight | 42 lbs |
---|---|
Dimensions | 29 × 19 × 19 in |
Maximum Horsepower: | 750 HP |
Injection Style: | Multi-port |
Timing Control Compatible: | Yes |
Power Adder Compatible: | Yes |
Power Adder Type: | Boost/Nitrous oxide |
ECU Included: | Yes |
Fuel Pump Included: | Yes |
Transmission Controller Included: | No |
Metering Style: | Speed density (Map-N) |
Intake Manifold Included: | Yes |
Intake Section Included: | Complete |
Intake Material: | Aluminum |
Intake Finish: | Black aNodize |
Engine Block Deck Height: | Standard deck |
Multi-Port Fuel Rails Included: | Yes |
Throttle Body Mounting Flange: | GM LS2 4-bolt |
Venturi Quantity: | 1 |
Venturi Diameter (mm): | 102 mm |
Airflow Rate (cfm): | 1500 cfm |
Throttle Body Material: | Billet aluminum |
Throttle Body Finish: | Black |
Injectors Included: | Yes |
Injector Size (lbs/hr): | 55 lbs./hr. |
Calibration Module Included : | Yes |
Wiring Harness Included: | Yes |
Oxygen Sensor Included: | Yes |
Fuel Pump Style: | External fuel pump |
Fuel Pressure Regulator Included: | No |
MAP Sensor Included: | Yes |
IAT Sensor Included: | Yes |
TPS Sensor Included: | Yes |
Quantity: | Sold as a kit. |
Universal: | No |
Fuel Type: | Alcohol, Gasoline, MethaNol, Flex |
