70017
Ultimate LS7 750HP Square Port Kit

$2,107.00

In stock

This product falls under the following Emissions Category:

See Emissions Details

3

Description

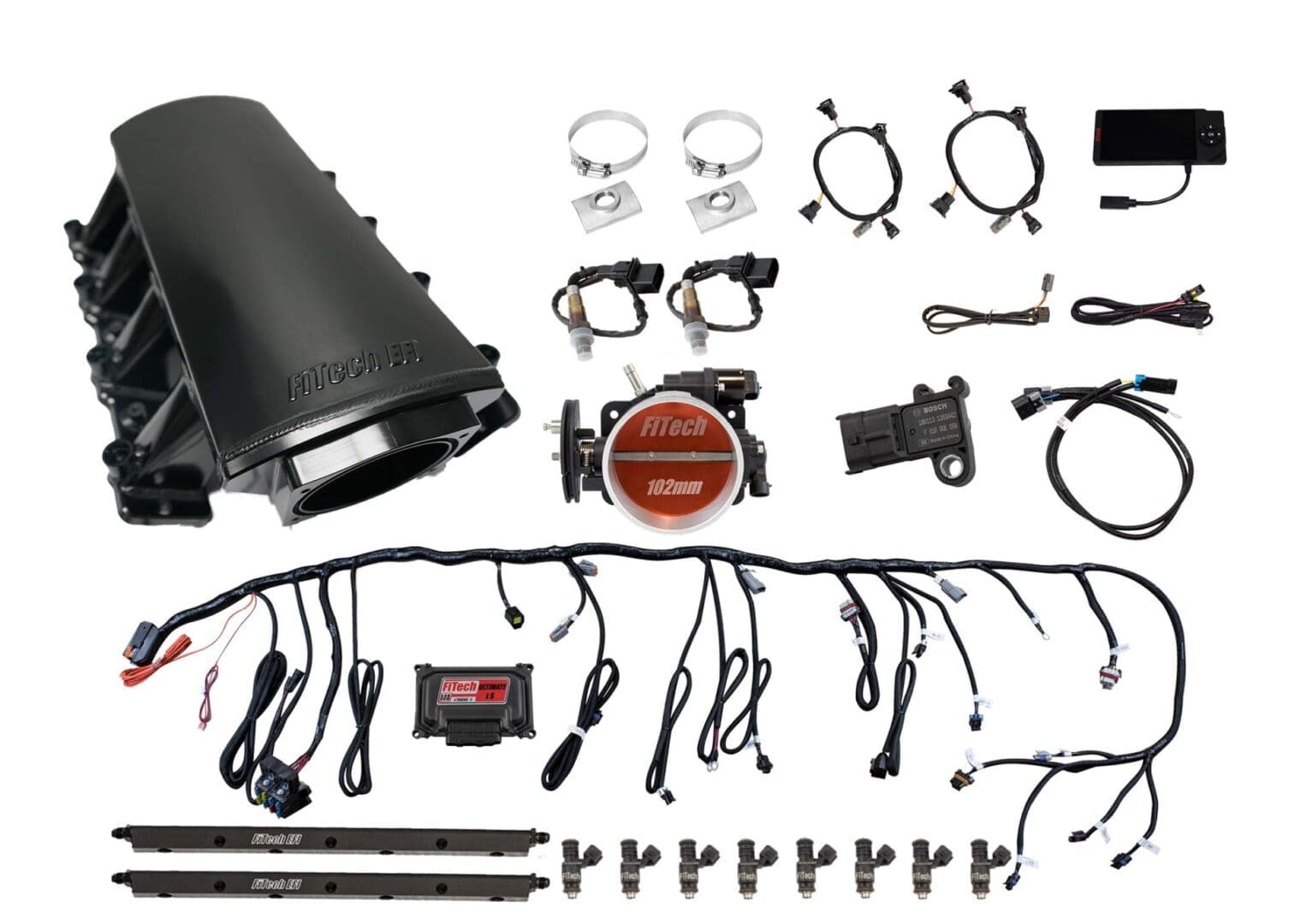

The Ultimate LS 750HP Square Port Kit without trans control for the LS7 (Part No: #70017) are a complete self-tuning induction systems for LS engines designed for the do-it-yourself hot rodder to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today. Forget sourcing mismatched parts and cutting and splicing old harnesses and re-flashed ECU’s from Craigslist tuners. FiTech’s Ultimate EFI is a complete Kit. Suitable for that junkyard 5.3 to a stroker 427, we have you covered! Check out the list of features and you will wonder why it’s never been so simple to ditch that old factory hardware or top off that fresh long block. We have taken the work out of getting your new or pull-out LS up and running in a flash. That’s why we call this kit the Ultimate EFI.

Prop 65

Additional information

Weight 34 lbs
Dimensions 29 × 17 × 11 in
Maximum Horsepower:

750 HP

Injection Style:

Multi-port

Timing Control Compatible:

Yes

Power Adder Compatible:

Yes

Power Adder Type:

Boost/Nitrous oxide

ECU Included:

Yes

Fuel Pump Included:

No

Transmission Controller Included:

No

Metering Style:

Speed density (Map-N)

Intake Manifold Included:

Yes

Intake Section Included:

Complete

Intake Material:

Aluminum

Intake Finish:

Black Anodized

Engine Block Deck Height:

Standard deck

Multi-Port Fuel Rails Included:

Yes

Throttle Body Mounting Flange:

GM LS2 4-bolt

Venturi Quantity:

1

Venturi Diameter (mm):

102 mm

Airflow Rate (cfm):

1500 cfm

Throttle Body Material:

Cast Aluminum

Throttle Body Finish:

Black

Injectors Included:

Yes

Injector Size (lbs/hr):

55 lbs./hr.

Calibration Module Included :

Yes

Wiring Harness Included:

Yes

Oxygen Sensor Included:

Yes

Fuel Pressure Regulator Included:

No

MAP Sensor Included:

Yes

IAT Sensor Included:

Yes

TPS Sensor Included:

Yes

Quantity:

Sold as a kit.

Universal:

No

Fuel Type:

Alcohol, Gasoline, MethaNol, Flex
