50020
Go Fuel In Tank Dual Pump Module With 2 Inch Fill
$532.00
FiTech Part Number: 50020
In stock
This product falls under the following Emissions Category:
WARNING: Hazardous Material Warning Close WARNING: This product can expose you to chemicals including Nickel Acetate, Chromium, Lead, Lead Compounds, Nickel (Metallic), Nickel Compounds, Diisonyl Phthalate (DINP) and Toluene which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Description
If you’re looking to update your fuel cell or custom tank with an internal electric fuel pump, turn to FiTech for their new Fuel Cell Pump Modules.
Go Fuel In Tank Dual Pump Module With 2 Inch Fill dual pump supports up to 1600 HP.

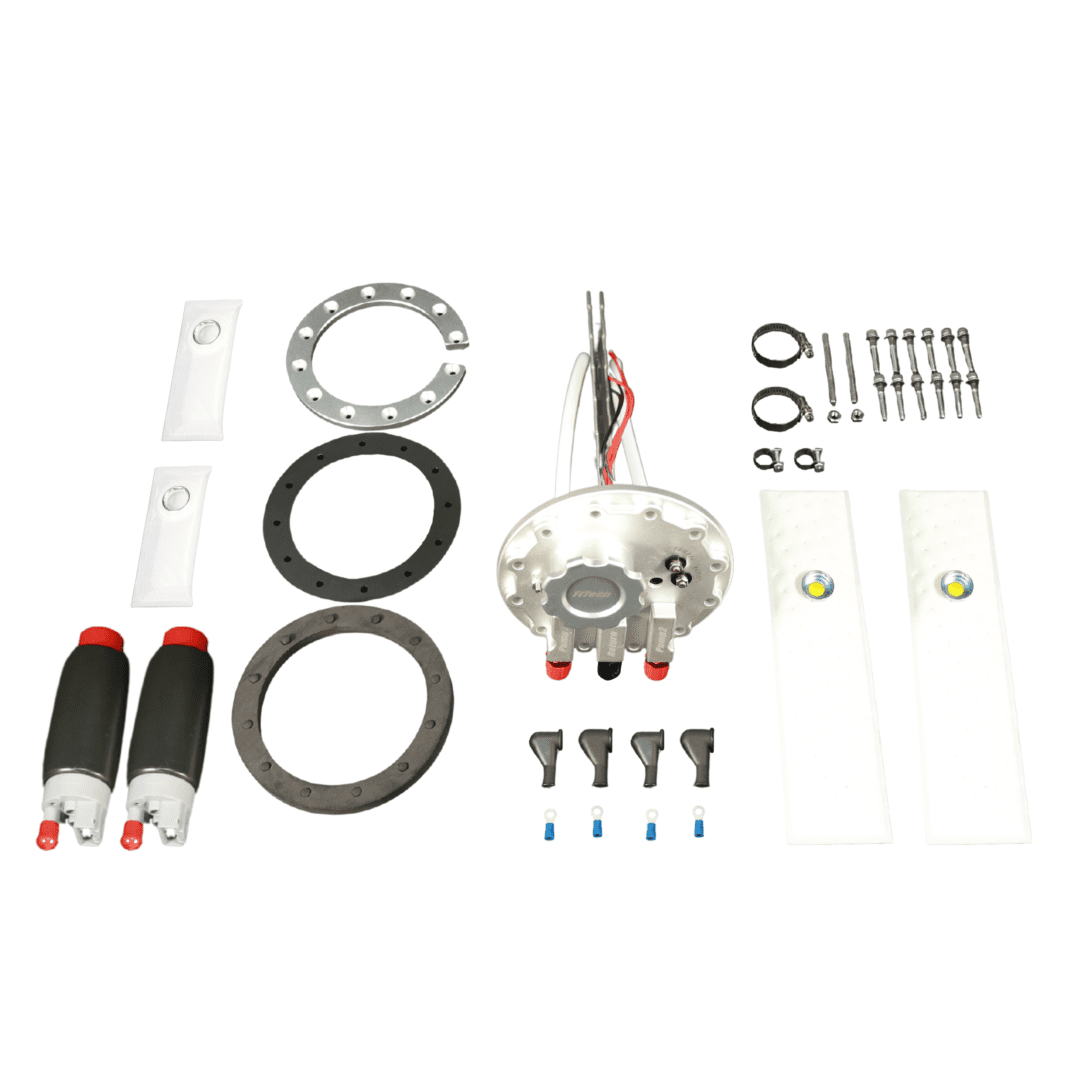

The Dual Module is supplied with two 340 LPH pumps and has dual outlets.
The CNC-machined billet module top is machined to fit most fuel cells with a 12-bolt flange or can be installed in a custom tank. There is a 2” diameter filler assembly along with a sealed cap (filler tube extensions are available separately). The feed and return outlets are machined for -6AN ORB fittings which are supplied to help complete your installation along with secure terminals to connect the fuel pump.
The fuel pump can be positioned in tanks from 7” – 16” in depth and is supplied with an effective filter to stop any debris from entering the system. Nylon hose and Viton seals make the modules compatible for use with E85 fuels.
Additional information
Weight | 9 lbs |
---|---|
Dimensions | 12 × 17 × 9 in |
