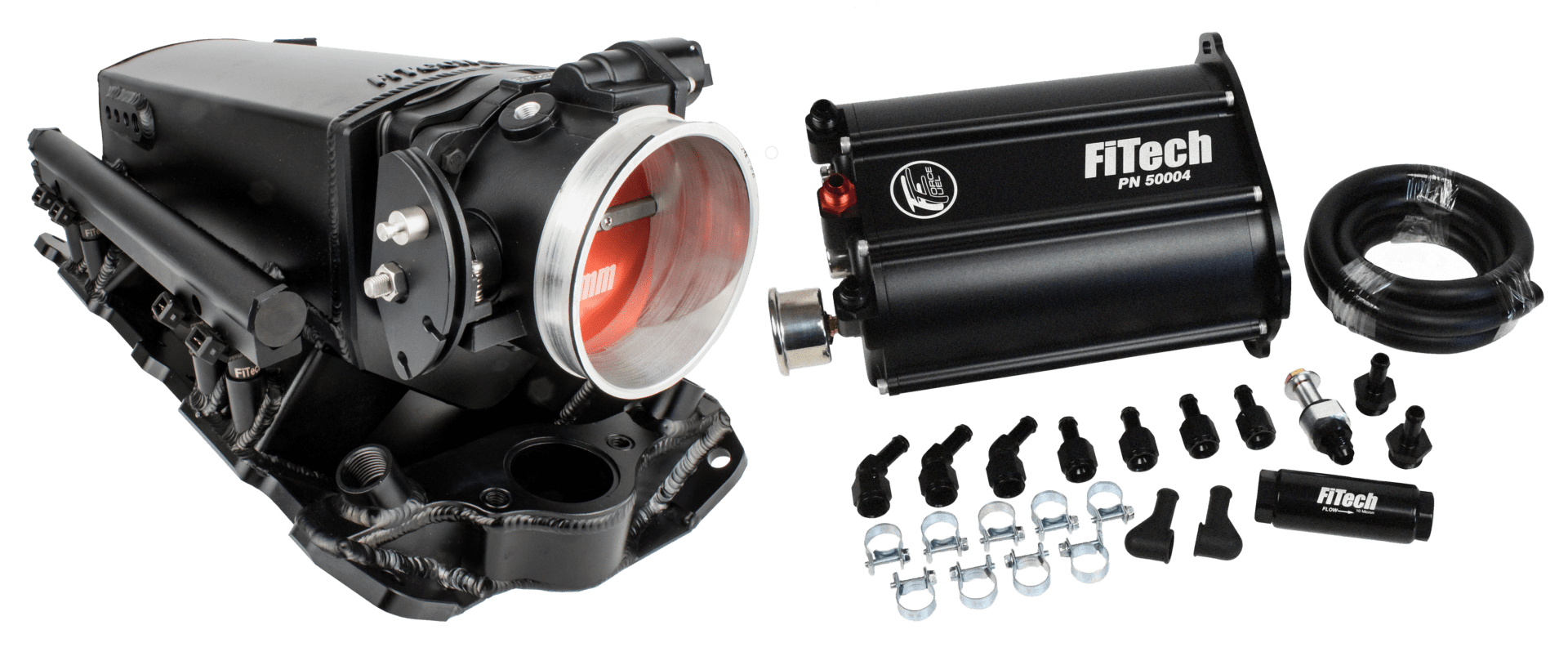

Ultra Ram SBC 650 HP 92mm Cast Throttle Body, w/ Force Fuel, Fuel Delivery System


Part Number: 35301

Estimated Shipping Approximately 2– 4 weeks.

FiTech 3 year limited warranty badge

This product falls under the following Emissions Category:

See Emissions Details


Emission Controlled Vehicle Information: Not legal for use of Emissions Controlled Vehicles. Check with your local DMV, emissions testing facility, or applicable State laws before installing. Please review your cart before checking out to make sure that your parts are legal for use in California and other states with similar regulations.


Wake up your old small block with a FiTech Ultra Ram EFI 600 hp kit! These self-tuning fuel injection systems for SBC engines are designed for anyone from the do-it-yourself hot rodder—to the professional EFI tuner! The Ultra Ram is ready to go with everything needed to convert your carbureted small block Chevy to top-of-the-line FiTech EFI self-learning technology. These kits are made to fit engines ranging from your crate stock rebuilt motor … to your custom-built race SBC.

FiTech’s all-new Force Fuel system makes the upgrade to FiTech EFI even easier! It mounts under the hood and is fed with the original mechanical or electric fuel pump. The fuel pump then fills the reservoir with a half-gallon of fuel to submerge an internal electric fuel pump—to keep it cool for long life and no chance of fuel starvation. An internal regulator keeps the pressure at a consistent 58 psi. Force Fuel then supplies the EFI system with the required high pressure to run at peak performance.

Additional features of FiTech Ultra Ram SBC EFI 600 hp self-tuning fuel injection systems:

* Black anodized aluminum parts

* High-flow throttle body

* Programmable touch screen hand-held controller

* Compatible with standard gas or E-85 fuel

Force Fuel system adds:

* 5 ft. of high-pressure fuel hose

* Serviceable 10-micron fuel filter

* AN fittings

* Return line fitting bung

* Liquid filled gauge

* Dual function bracket for bottom or side mounting


Additional information

Weight 43 lbs
Dimensions 28 × 17 × 18 in

Additional information

Weight 43 lbs
Dimensions 28 × 17 × 18 in
