70082
Ultimate LS 750 HP Dual Quad Matte Black EFI W/Cathedral Port Intake & Trans Control

$2,679.00

FiTech Part Number: 70082

In stock

California Prop 65 Warning

This product falls under the following Emissions Category:

See Emissions Details

3

WARNING: Hazardous Material Warning Close WARNING: This product can expose you to chemicals including Nickel Acetate, Chromium, Lead, Lead Compounds, Nickel (Metallic), Nickel Compounds, Diisonyl Phthalate (DINP) and Toluene which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

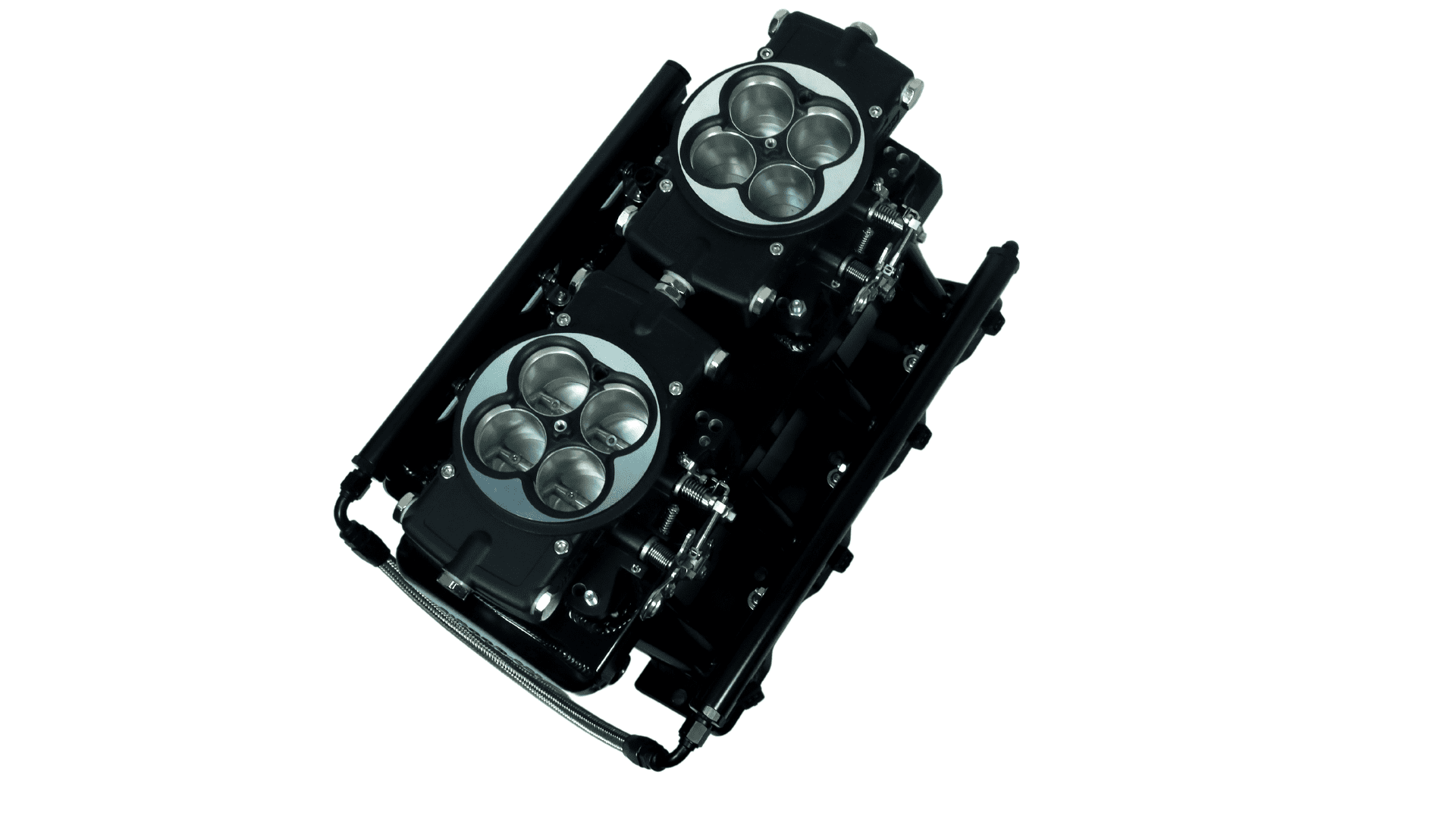

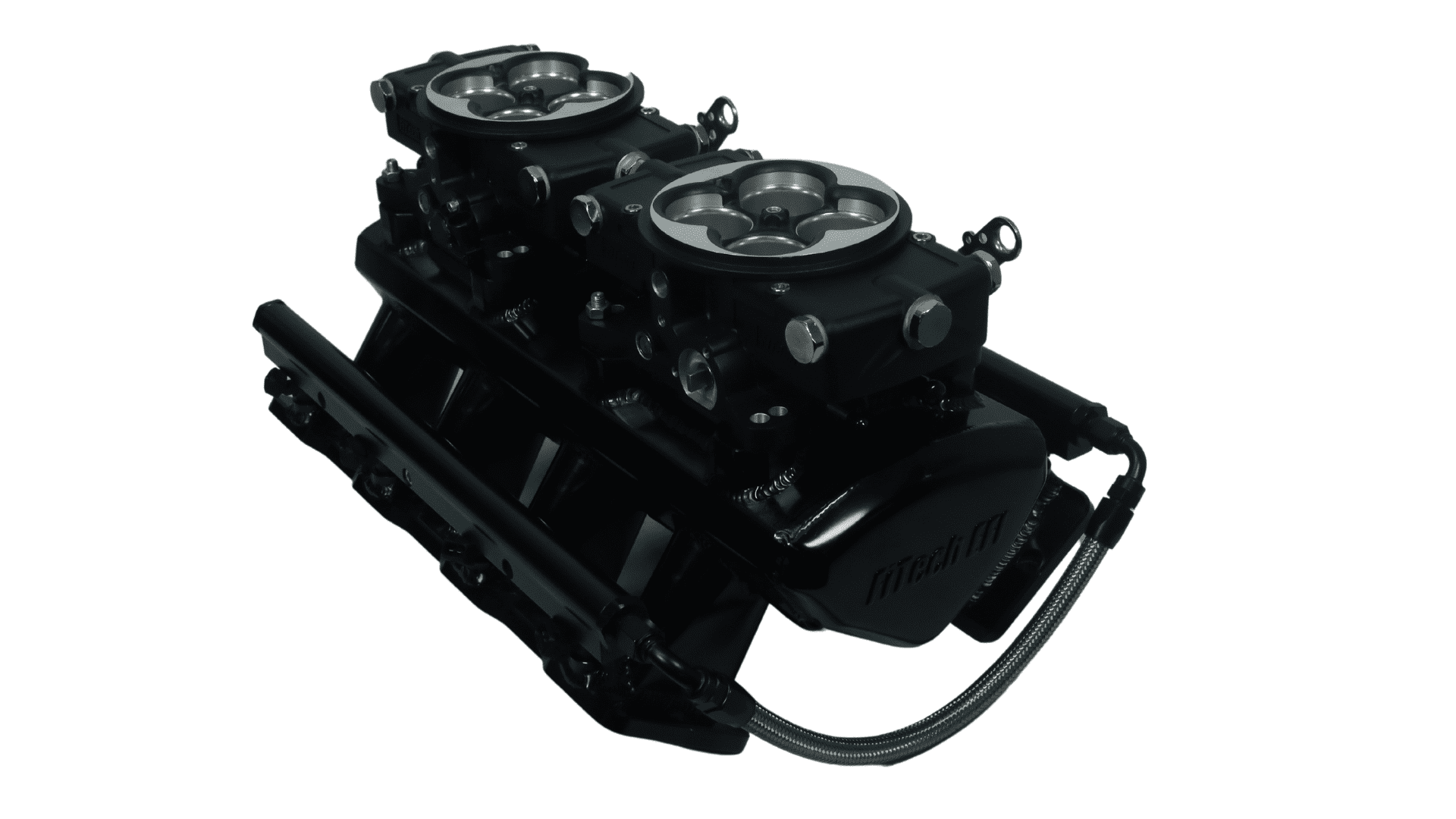

FiTech Fuel Injection Ultimate LS 750 HP Dual Quad Matte Black EFI System With Cathedral Port Intake & Transmission Control 70082
FiTech Fuel Injection Ultimate LS 750 HP Dual Quad Matte Black EFI System With Cathedral Port Intake & Transmission Control 70082

Description

Ultimate LS 750 HP Dual Quad EFI System

Looking for something different and cool for your LS engine? The new dual quad throttle body system will really stand out in a sea of LS engines thanks to our unique sheet metal intake manifold topped with two
throttle bodies!

The trick intake is plumbed with fuel rails and eight injectors set up as a sequential EFI system. Thanks to our well proven self-learning technology, the 2×4 will idle smooth and cruise at low rpm, but is ready to go when you hit the pedal.

Features

  • Suitable for up to 750 HP
  • External ECU
  • Timing Control
  • Boost and Nitrous Capable
  • Short Cathedral Intake
  • Fits LS1, LS2, LS6, LR4, LM4, LM7, LQ4, LQ9 Heads
  • Transmission Control 4L60, 4L65,4L80, 4L85
  • Dual O2 Sensors
  • Cable Driven 102mm Throttle Body
  • 55lb Injectors (8)
  • 3-Bar MAP Sensor
  • Fan Control
  • AC Input
  • 4150 Flange
  • E85 Compatible
  • Pro-tuning laptop software
  • Matte Black Finish



Additional information

Weight 26 lbs
Dimensions 29 × 17 × 11 in
Maximum Horsepower:

750 HP
Injection Style:

Multi-port
Timing Control Compatible:

Yes
Power Adder Compatible:

Yes
Power Adder Type:

Boost/Nitrous oxide
ECU Included:

Yes
Fuel Pump Included:

No
Transmission Controller Included:

Yes
Metering Style:

Speed density (Map-N)
Intake Manifold Included:

Yes
Intake Section Included:

Complete
Intake Material:

Aluminum
Intake Finish:

Black Anodized
Multi-Port Fuel Rails Included:

Yes
Throttle Body Mounting Flange:

Dual 4-barrel square bore
Venturi Quantity:

8
Venturi Diameter (mm):

44 mm
Airflow Rate (cfm):

1700 cfm
Throttle Body Material:

Aluminum
Throttle Body Finish:

Black
Injectors Included:

Yes
Injector Size (lbs/hr):

55 lbs./hr.
Calibration Module Included :

Yes
Wiring Harness Included:

Yes
Oxygen Sensor Included:

Yes
Fuel Pressure Regulator Included:

Yes
MAP Sensor Included:

Yes
IAT Sensor Included:

Yes
TPS Sensor Included:

Yes
Quantity:

Sold as a kit.
Universal:

No
Fuel Type:

Alcohol, Gasoline, MethaNol, Flex
